簡介： P6 Low Power Consumption outdoor waterproof led display board for control room is one of the widely used led display in the market now, usually applied in commercial ads, stadium, stage rental...... Features: 1. High definition 2. only5kglightweight 3. IP65 protection 4. frontmaintenancedesign 5. high cost performance, 30% cheaper. ...

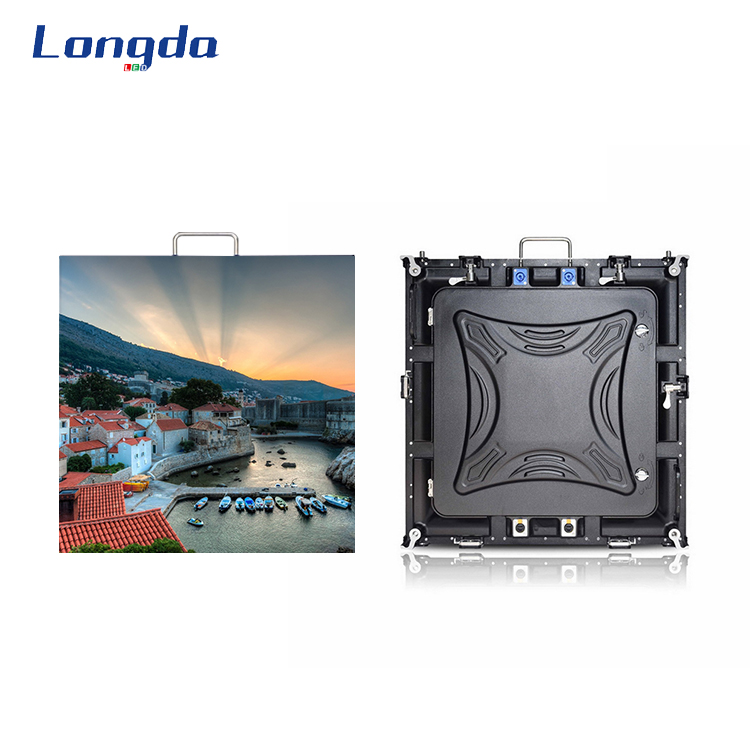

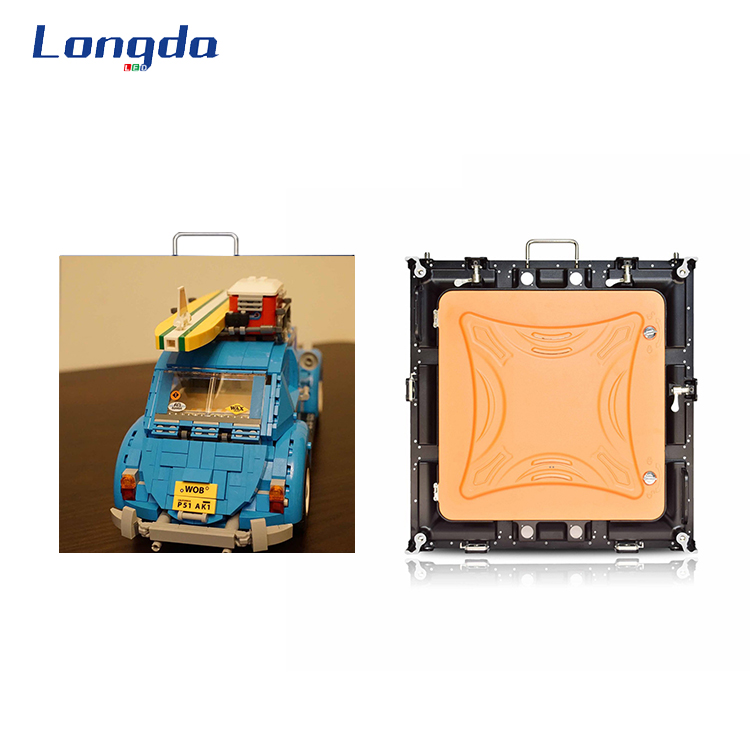

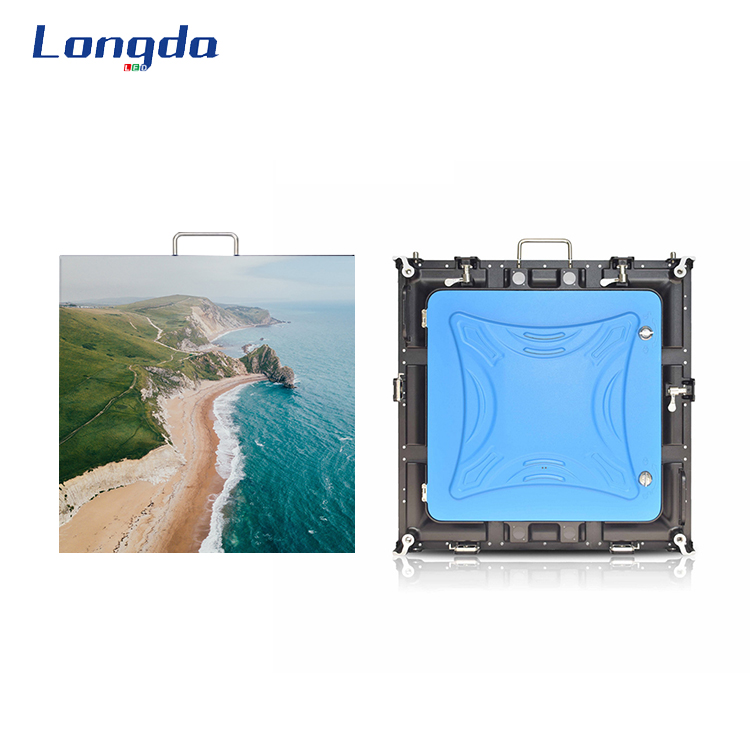

P6 Low Power Consumption outdoor waterproof led display board for control room is one of the widely used led display in the
market now, usually applied in commercial ads, stadium, stage rental......
Features:
1. High definition
| Outdoor P6 led screen | |
| Physical parameters: | |
| Pixel pitch: | P6 |
| Physical density: | 27777 dots/m2 |
| Led packing: | SMD3535/3528 |
| LED composition: | 1R1G1B |
| Cabinet size: | 576x576mm/960x960mm |
| Caninet weight: | 7.5kg/28kg |
| Cabinet material: | Die-casting aluminum/Iron |
| Optoelectronic parameters: | |
| AC operation voltage: | 100~120V/220~240V |
| Scan: | 1/8 S;1/16S |
| Brightness: | indoor 860cd/m2;outdoor 5500cd/m2 |
| Gray level: | 14 bit |
| View distance: | 6~50m |
| View angel: | 140 degree horizon/vertical |
| Refresh rate: | ≥1920 |
| Life span: | 100,000h |
| Frame frequency: | ≥60Hz |
| IP rate: | outdoor IP65 |
